LRC-S02

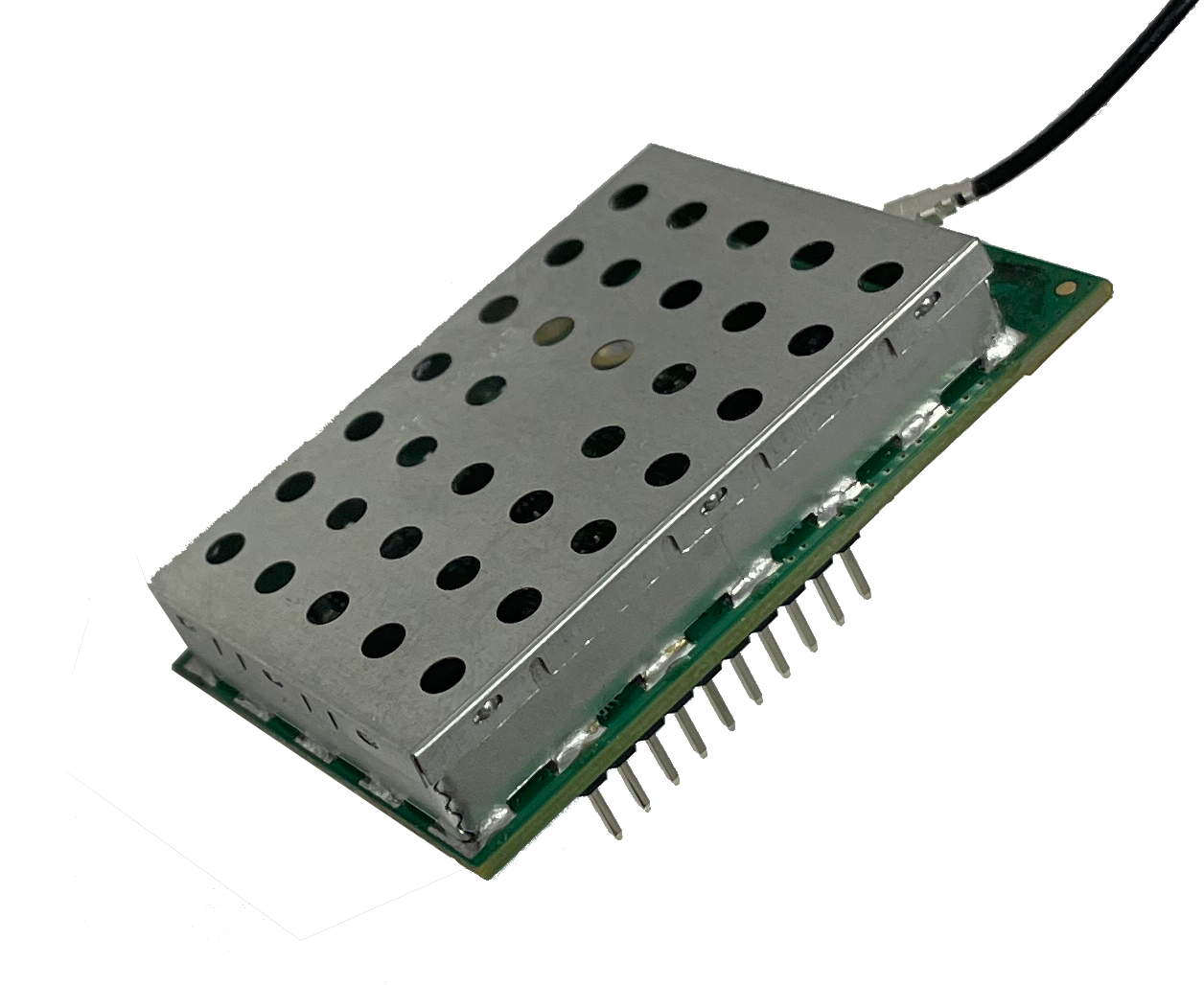

SigLRC Long Range Concentrator Module

Based on Semtech’s SX1302, SigLRC provides 4 or 8 channels of LoRa/FSK to enable creation of custom LoRa and LoRaWAN gateways. The SPI interface is presented on twin connectors to allow easy replacement of other similarly pinned radios. Signetik also provides Linux/FreeBSD driver source code as well as the necessary changes to Semtech’s LoRaWAN packet forwarder.

alt text
  • Rapidly add LoRaWAN gateway supoprt to your design
  • 10 MHz SPI interface allows for rapid transfer of packets
  • u.FL antenna connection
  • On-board LEDs show health and activity
Functionality
  • SX1302 + SX1250 for 4-8 channel operation
  • LoRa or FSK support
  • SF5 through SF12
  • 10 Mhz SPI inteface to host processor
Features
  • Small Size – 44 mm x 29 mm
  • Fully FCC certified
  • u.FL antenna connectino
  • Twin connectors for retrofitting into some common sockets
  • Radio health and activity LED indication
Intelligence
  • Drivers available for FreeBSD or Linux
  • Several input voltage options
Protocols
  • LoRa
  • FSK
  • SPI
  • GPIO
  • UART

FCC certified module based on the Semtech SX1302 allows for rapid development of a LoRaWAN gateway!
