DEV-LRN-R1

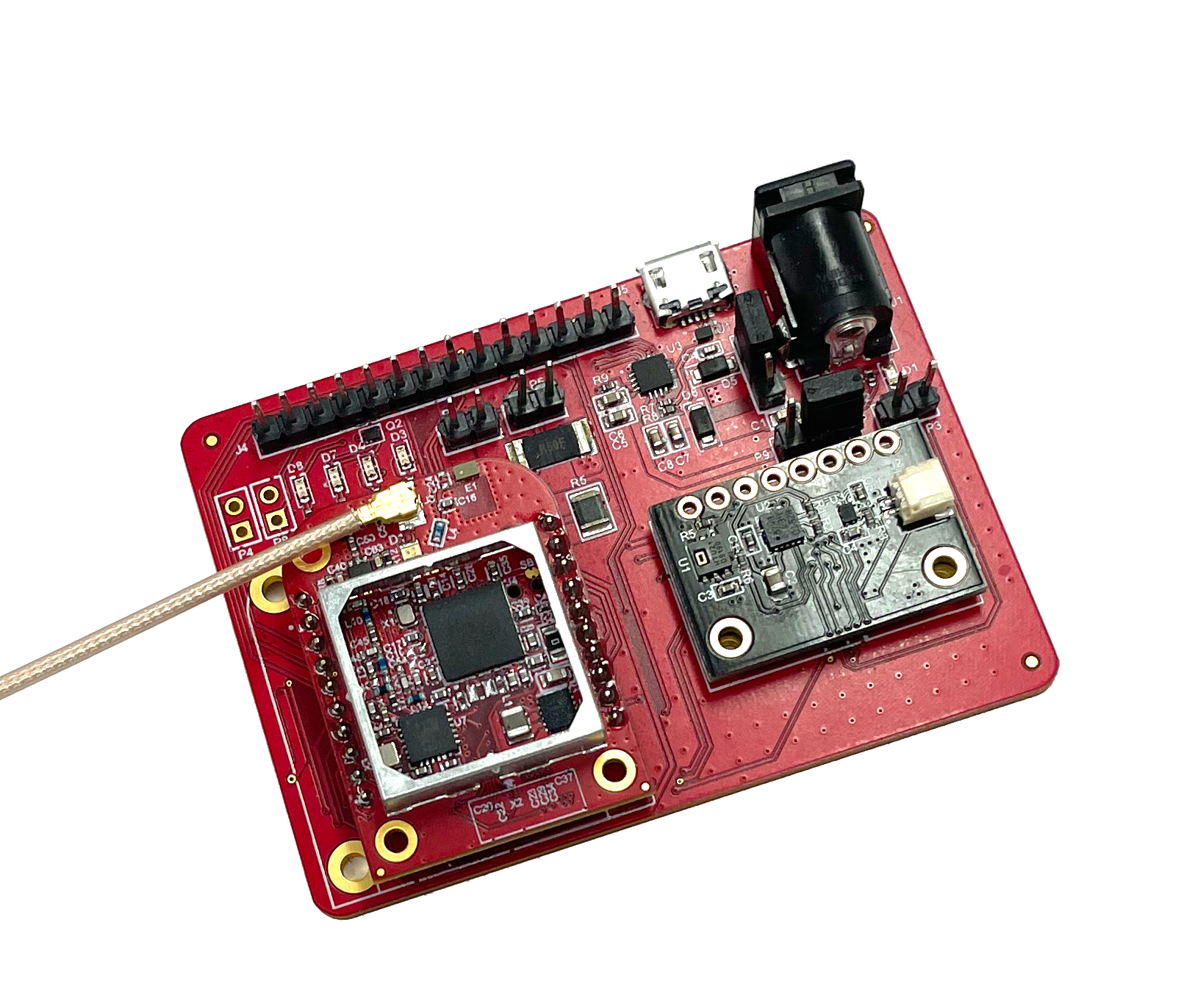

SigLRN LRN-R1 Development Board

Development kit for the SigLRN LRN-R1, including SigSense THA-A1. This kit allows for development of new sensor boards, wiring in other sensors or interfaces to MCU systems, power profiling, and terminal control

alt text
  • Evaluate and develop SigLRN and SigSense
  • Prototype your design using connectors
  • Power measurement capabilities through removable jumpers
  • Swap out SigLRN with other Signetik core modules
Functionality
  • Dual USB UARTs
  • Power profiling using jumpers
  • Breakout of various I/O
  • LEDs for MCU control
  • Powered by 5V supply or USB
  • Temperature, Humidity, and Accelerometer
Features
  • Various sockets for testing multiple modules
  • The ability to remove SigSense from the connections to test custom sensors
  • Single USB connection for power and dual-uarts
  • Access to TagConnect emulator connection
Intelligence
  • Design with SigLRN and SigSense
  • Host controlled via the UART or standalone host-less operation
Protocols
  • LoRa
  • FSK
  • I2C
  • SPI
  • GPIO
  • UART

Rapidly design your system, then remove the modules from the development kit and snap together to deploy your prototype design!

More Information
