GWB-A1

SigGate IoT - Gateway Baseboard

SigGate provides a modular design to create a gateway to suit your needs. The option of adding up to two add-on modules provides a variety of network connectivity options, apart from the Ethernet built into the Gateway base. LoRaWAN to Cellular, BT to Wi-Fi, Wi-Fi to Ethernet, are among many combinations that can be achieved with SigGate. Based on the TI AM3352, and equipped with Ethernet, USB, as well as dual twin-connectors and dual low-profile connectors, SigGate allows for rapid design of custom gateways.

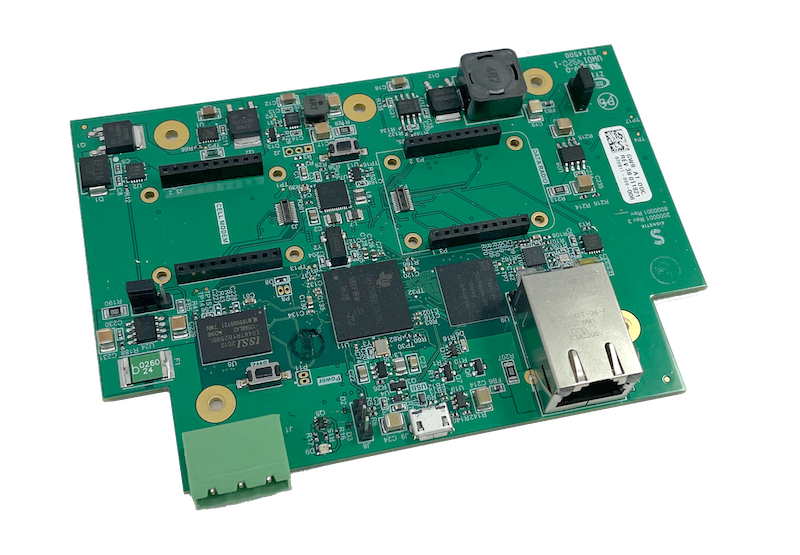

Gateway Baseboard image
    • ARM® Cortex®-A8 MPU, 32-Bit 800MHz
    • 4Gbit DDR3 SDRAM
    • 8GB eMMC
    • RJ45 10/100 Base-T
    • USB-UART
    • USB - micro B USB 2.0
    • 12VDC
    • Accepts up to 2 add-on modules
    • Dual Twin Connectors
    • Dual Low-Profile Connectors
    • Firmware OTA Updates
    • RGB LED
    • IP67 Ready, enclosure design available
    • Ready out of box
    • Suitable for Edge Computing
    • Integrated Network Stack
    • Configuration Tools
    • BSD OS
    • Ubuntu 18.04 OS
    • LoRa Packet Forwarder
    • Package Manager

    Supply power, and any two modules, to create your own custom gateway!
