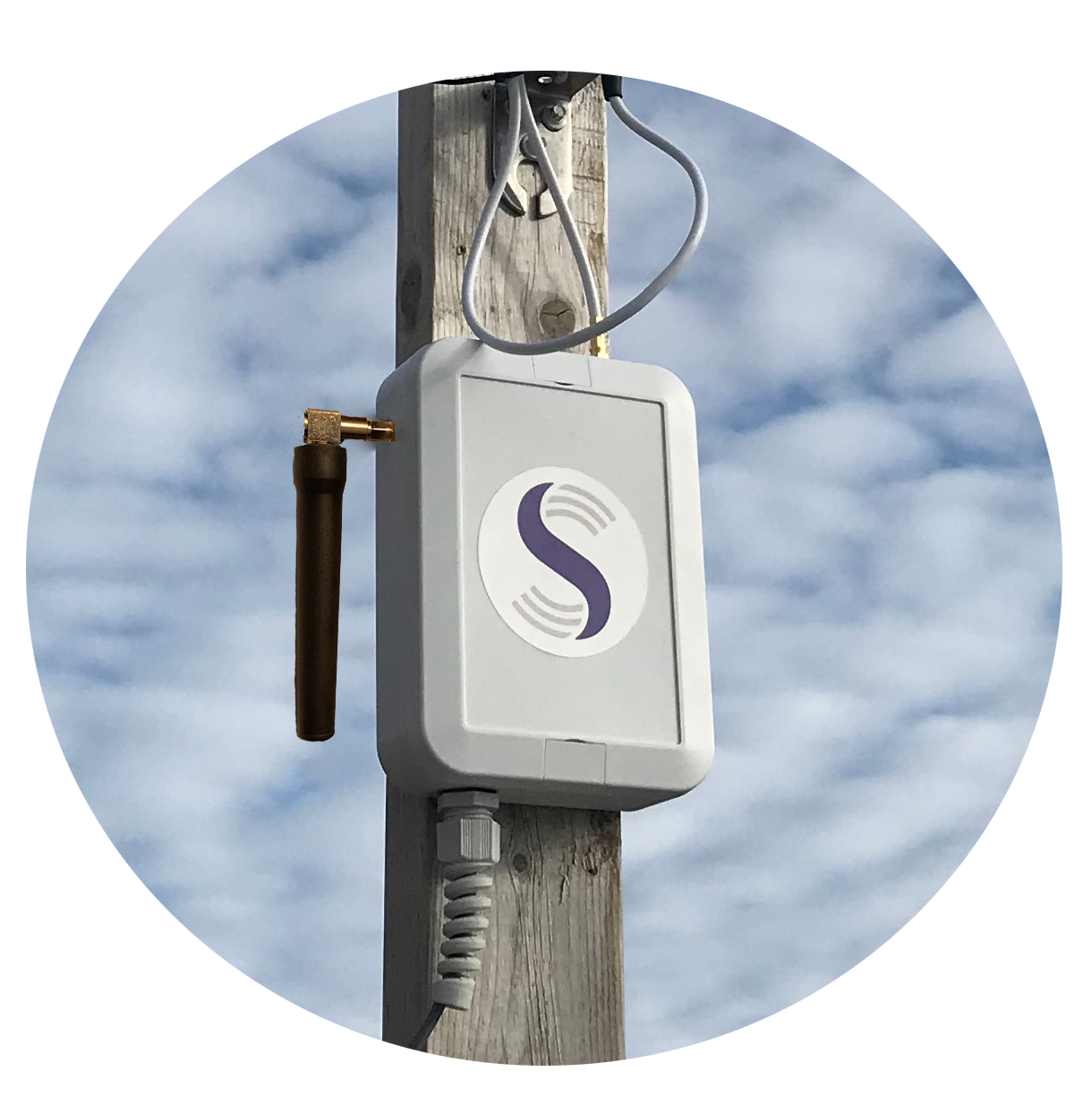

GW-LRNx-ODC
SigGate IoT - LoRa Gateway
Based on the TI AM3352, and equipped with Ethernet, USB, cellular, and 4 or 8 Channel LoRaWAN. LoRaWAN to Ethernet and/or Cellular, or Ethernet with Cellular fallback. Powered by 12V, IP67 rated, and designed for outdoors.
- ARM® Cortex®-A8 MPU, 32-Bit 800MHz
- 4Gbit DDR3 SDRAM
- 8GB eMMC
- RJ45 10/100 Base-T
- USB-UART
- USB - micro B USB 2.0
- 12VDC
- Cat M-1 Celluar
- 8 or 4 channel LoRaWAN
- Ethernet
- Firmware OTA Updates
- RGB LED
- IP67
- Ready out of box
- Suitable for Edge Computing
- Integrated Network Stack
- Configuration Tools
- BSD OS
- Ubuntu 18.04 OS
- LoRa Packet Forwarder
- Package Manager
- FOTA / DFU over Ethernet or Cellular
Supply power, configure, and begin forwarding your LoRa packets to the cloud
