LRN-R1

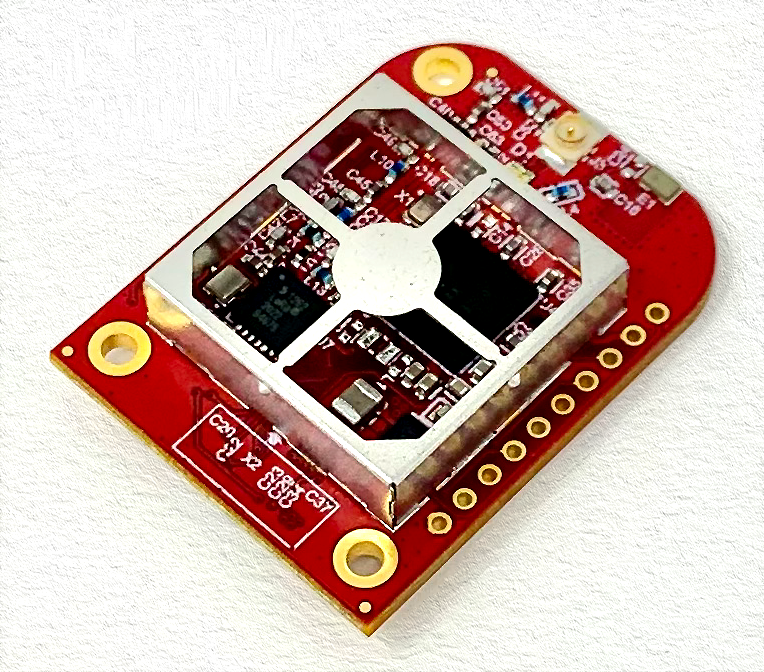

SigLRN IoT - Long Range Node
Based on the Semtech® SX1262 and the Nordic® nRF52840, LoRaWAN network, BLE capable, SigLRN™ is designed for intelligent IoT applications. LoRa Radio is 8 Channels half duplex. BLE allows for configuration or relaying data as a gateway. A high-density low-profile connector is capable of interfacing to low-cost sensor boards as well as MCU/MPU systems. Twin connector allows an alternate interface to exiting systems. Sensor boards are available from Signetik or rapidly designed based on freely available reference design files. Ready to use without custom coding.
Functionality
- LoRaWAN Network
- BLE 5.0
- IEEE 802.15.4
- Thread/Zigbee
- Proprietary 2.4GHz
- ARM CryptoCell 310 for AES/SHA-1/SHA-2/ HMAC/ECC/RSA
- ARM® Cortex®-M4F MPU, 32-Bit 64MHz
- Input Voltage 1.8V - 5.5V
Features
- IoT Ready
- Small Size (33 x 25 x 8mm with RF Shield)
- Twin Connector Option
- Low Profile Connector Option
- Onboard Regulated 3.3V
- Tri-Color LED for status
- LoRa u.FL antenna
- BLE chip antenna
- Low Current sleeping for battery applications
Intelligence
- BLE plus phone application for configuring
- Integrated LoRaWAN Stack
- FOTA updates for the application
- Built-in Firmware for standalone sensor reporting
- Built-in Firmware for slave mode
Protocols
- Built-In API for LoRa and BLE
- Cloud Management Software
- ChirpStack Support
- Device Management via SigNet
- Signetik DFU (OTA firmware update over LoRa)
- LoRaWAN Class A, C, with Class B coming soon
- Join the network by ABP or OTAA
Simply configure via UART or our iOS/Android application and push data via UART or configure for automatic sensor reading and pushing.
