BT-N1-USB

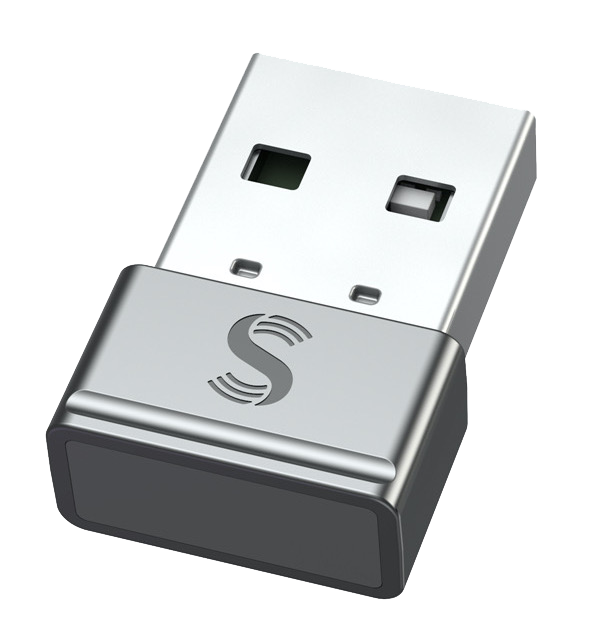

SigBLE - Bluetooth Dongle
Based on the Nordic nRF52840 BLE module, SigBLE is designed for Intelligent IoT applications. It comes equipped as a standard BLE USB Dongle and is capable of being adapted to custom needs. A debug probe can be used to load custom code and debug, while firmware can be updated in production over USB.
- Add robust BLE connectivity to your system.
- Cloud management software for device management and firmware updates.
Functionality
- BLE 5.0
- IEEE 802.15.4
- Thread/Zigbee
- Proprietary 2.4GHz
- ARM CryptoCell 310 for AES/SHA-1/SHA-2/ HMAC/ECC/RSA
- ARM® Cortex®-M4F MPU, 32-Bit 64MHz
Features
- 128 bit Encryption Co-Processor. (ARM CryptoCell 310)
- -103 dBm Receiver Sensitivity
- Intelligent Iot
- Output power adjustable from +8 dBm to -20 dBm
- Receiver sensitivity as low as -103 dBm
- High data rate support (2 Mbps)
- PCB Antenna
- USB 2.0
Intelligence
- Application firmware updates via USB
- Integrated BLE stack
- Nordic SoftDevice,
Protocols
- NIST SP800-90A and SP800-90B compliant random number generator
- AES-128 – ECB, CBC, CMAC/CBC-MAC, CTR, CCM/CCM*
- Chacha20/Poly1305 AEAD supporting 128- and 256-bit key size
- SHA-1, SHA-2 up to 256 bits
- Keyed-hash message authentication code (HMAC)
- RSA up to 2048-bit key size
- SRP up to 3072-bit key size
- ECC support for most used curves, including P-256 (secp256r1) and Ed25519/Curve25519
- Application key management using derived key model
More than just a modem! The intelligence built in makes integration quick and easy, while allowing complete customization.
