M1-B1

SigCell IoT - Cellular BLE Module

Based on the Nordic nRF9160 LTE-M/NB-IoT SIP and the Nordic nRF52840, FCC, Verizon, and AT&T certified1, SigCell BLE USB is designed for intelligent IoT applications with the capability of interfacing to host systems via the USB interface. The USB interface enumerates as two UARTs. The host can use the first UART to control the cellular connection via AT commands or Signetik’s API. Signetik’s API supports various IoT protocols such as HTTP REST, CoAP/CBOR, MQTT, TLS, and more. The second UART is used with an HCI interface that is recognizable by most operating systems, out of the box.

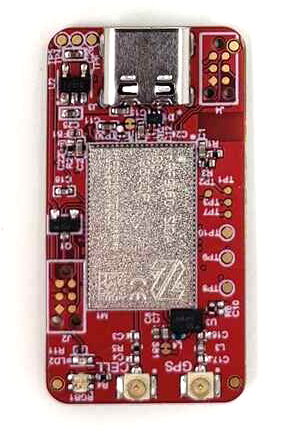

alt text
  • Add connectivity to your system OR use standalone with sensors.
  • On-board power regulation reduces cost and complexity of add-on board.
  • Regulated 3.3V power provided to the user add-on board.
  • Tri-color LED to indicate connectivity, signal strength, and more.
  • API for simple sensor reporting without needing cumbersome modem management.
  • Cloud management software for device management and firmware updates.
  • SIM card ESD protection.
Functionality
  • LTE-M/NB-IoT
  • GPS/GNSS
  • BLE 5.0/HCI
  • Nordic nRF9160-nRF52840-based design
  • Cortex-M33 Microcontroller
Features
  • Small Size – 38 x 20.5 x 6mm
  • USB interface to 2 UARTs
  • Intelligent master/slave modes
  • Tri-color LED for state and signal strength
  • Multiple microcontrollers for intelligent application support
  • OTA Firmware updates
  • SIM card support with future eSIM
Intelligence
  • Intelligent for IoT
  • AT Commands
  • Host Interface
  • API for standard IoT protocols
  • Cloud management software
  • Integrated Network Stack
Protocols
  • TCP/UDP
  • HTTP/HTTPS
  • TLS
  • MQTT
  • Azure/AWS IoT
  • CoAP/CBOR
  • Firmware OTA (FOTA) updates

More than just a modem! The intelligence built in makes integration quick and easy, while allowing complete customization.

1 AT&T Certification is expected in Q3 2021
